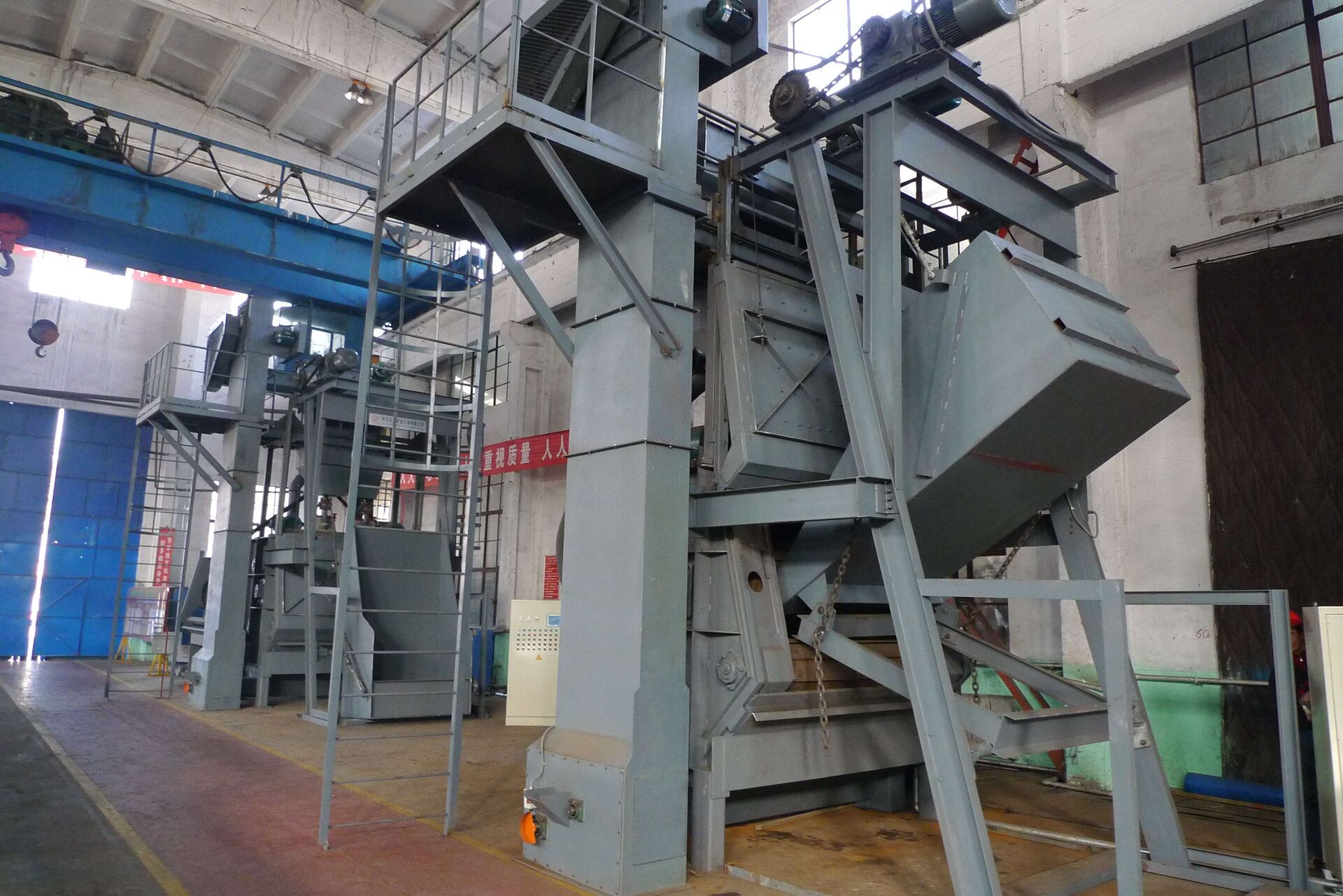

The Model 15GN crawler shot blasting machine is a standard series of cleaning equipment. It is used to remove the sticky sand, rust layer, oxide scale, and burr on castings, forgings, stampings, etc., which are easily tumbling and falling, non-brittle parts that are not easily crashed, and cores that are not deep. The main users are machine tools factory, automobile factory, textile machinery factory, heat treatment workshop, cast steel workshop and stamping workshop. Due to the good shot-blasting protection measures, strong shot-blasting performance, and reasonable structure of the steel shot circulatory system, satisfactory results can be obtained for workpieces which are very difficult to clean.

15GN Shot Blasting Machine Specification

The crawler shot blasting machine can be used to clean castings, forgings and weldments, removing sand and oxide scale on the surface of the workpiece. Due to the good protection measures of this model, the strong shot blasting performance and the reasonable structure of steel shot circulatory system, satisfactory results can be obtained for for workpieces which are very difficult to clean.

Shot blasting machines can also be used to clean cast aluminum parts or certain non-ferrous metal parts. If zirconium, titanium, aluminum, magnesium and their alloys are cleaned up, flammable or explosive dusts will be produced. So some effective measures must be taken to solve them. When the user operates the unit, strict protective measures and fool-proof auxiliary work should be taken to remove all dust from the various parts of the machine. No open flames or arcs should be used near or on the equipment.

CrawlerBeltShot Blasting Machines add special manual pill gates, sand outlet gates and other special organizations.

Crawler beltshot blasting machine uses 75 m/s, 80 m/s, 85 m/s three blastingspeeds, suitable for sorting all kinds of data, and has outstanding cleaning effect.

The use of the internationally advanced quick-change structure for the belt pulleys is conductive to improving the production power and reducing the labor intensity.

The BE type seizure machine adopts the BE type segregator, which has excellent separation effect and high yield, and has an active effect on the improvement of blade life.

5. Bag-type shot blasting machine using bag filter, dust emission concentration lower than the national standard, improve the working environment for workers;

Crawler shot blasting machine has used cantilever centrifugal blasting device, which has the features of long service life, simple structure and other features;
