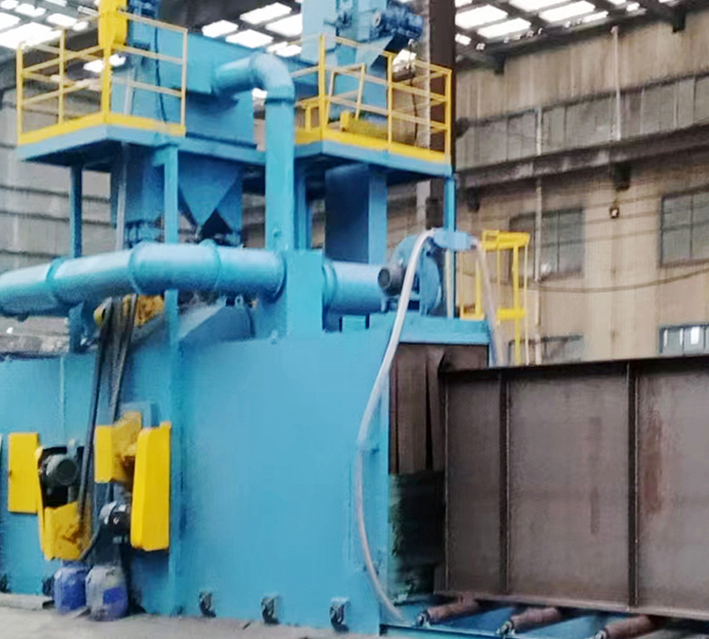

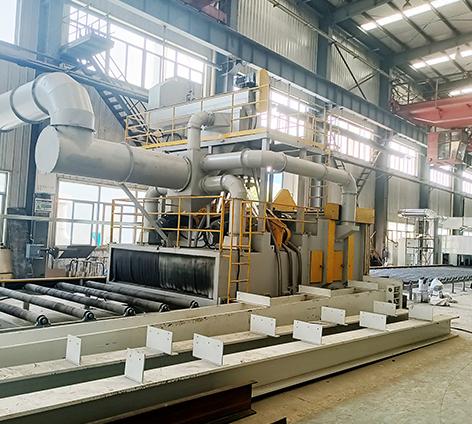

Shot Blast Cabinet

Roller conveyors the shot blasting cabinet is manufactured completely from manganese.

Therefore manganese has extremely good blasting properties. In the hot spot area of the blasting cabinet, additional 10mm thick manganese plates are added. They are attached from the outside and are easy to replace. When aggressive shot is used, additional lining of manganese-, tool steel or cast material can be provided.

To avoid shot leakage, several rubber layers are fitted in areas of heavy wear. These are mounted in a V-Track and are easy to replace.

Abrasive Removal Unit

After the blasting process, the workpiece may still be covered in blast media, which must be cleaned off. This task is carried out by a rotating brush, which is fitted with securely attached brush segments, which are interchangeable.

To avoid blast media building up on long parts, the rotation brushes flick the spent abrasive from the work surface into a specially designed trough which has a screw conveyor taking the media back into circulation. To keep the position between the brushes and the screw conveyor constant when blasting different sized work pieces, both are built with the same adjustable framework. The framework can be adjusted manually or automatically in intervals of less than 5mm at each required height. Finally any remaining media on the work pieces will be removed by the blow off station, which is mounted on the same framework and uses high pressure ventilators to blow off any media remaining.

Applications of Roller Conveyor Shot Blasting Machine

1.Marble & Cement: Stone surface roughness, anti-skid, retexturing, decoration;

2.Metal construction works: Cleaning surface for weld, cutting, drilling etc.

3.Pipes: Suface cleaning for painting, coating or drilling, welding etc.

4.Plate: Finishing the sheet surface for painting, coating or cutting, weld etc.

5.Customized-made: Surfacing cleaning of rusting, rubber, sand etc.

Characteristics of Roller Conveying Shot Blasting Machine

1. High efficient of Shot wheel Turbines

Compact shell structure, longer lifespan of blades, lower maintenance;

Upgraded wearing-resistance with low working noise & vibration;

High-speed blasting capacity with more recycle abrasive using;

Optimal blasting angle, velocity and energy-saving;

360 degrees of coverage, no dead-angle left;

VFD (Variable Frequent Drive) for motor to adjust of the shot projectile capacity;

2. Shot Blasting Room:

Shot blasting room design with CAD (Computer Aided Design) reach of best blasting angle and distance;

Blasting room made of strong profiles and 10mm plates;

The direct-blasting hot area use of upgraded wearing-resistance manganese casting steel with 35-45 HRC;

The input and output use rubber bands for sealing;

Labyrinth structure to keep the abrasive leak;

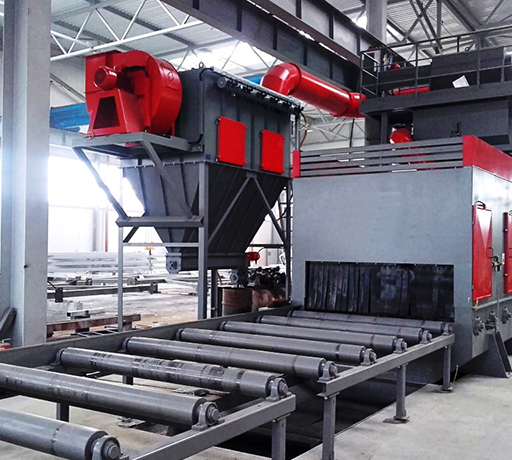

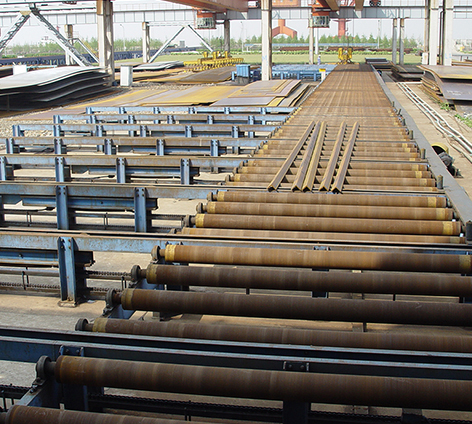

3. Roller conveying system:

The roller conveyors with mangeness liners for longer lifespan;

Bearing support with the labyrinth shape prevents leaking of the steel media;

Standard capacity is 1,000kgs per meter;

VFD (Variable Frequent Drive) for motor to adjust of the input & output feed speed;

4. Abrasive Recycle & Purify system:

Abrasive collect and transport to elevator via screw conveyor;

Elevator lifts the abrasive to the separator;

Bucket made of foundry casting;

Tension device prevent belt slide;

Separator adopts of DISA & Pangborn technology;

3-class of separating abrasive;

Efficient reach of 99.5%

Abrasive hopper for abrasive accumulate;

Electro-Magnetic valve control of abrasive flow;

5. Additional devices for removal of abrasive accumulated on the surface:

Scrapper system:

Scrappers’ height adjust with the PLC and HMI interlock control;

Brush sweeping system:

Continuous brush sweeping made of high performance of Nylon;

The height position can be adjustable according to the marbles;

Fan blowing system:

High-pressure fan of the blowing-off station;

The blowing nozzle’s direction can be adjustable;

6. Dust Collecting system:

Cartridge type of dust collector;

The efficient reach of 99.9%;

Very easy of replacing of cartridge filters;

Silencer to minimize of noise;

Maintenance platform;

7. Electrical Control system:

PLC (Programmable Logic Controller) for automatic process;

Safety interlock for operation;

The HMI (Human Machine Interface) panel control;

IP65 protection for control cabinet;

Machine entrance width (mm)70011001600220026003300
Machine entrance height (mm)550550550550550550
Work speed (m/min)1.0-2.31.4-2.41.0-2.30.8-2.51.0-3.00.8-2.5
Number of blast wheels4444/66/86/8
Power per blast wheel (kW)5.5/7.51111/1511/1511/15/18.511/15/18.5
Roller pitch (mm)800650650800800800
Alternative pitch (mm)400400400400400400
