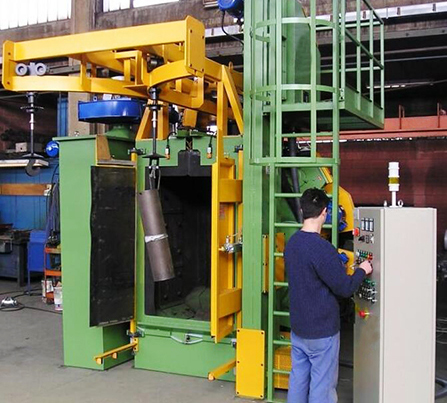

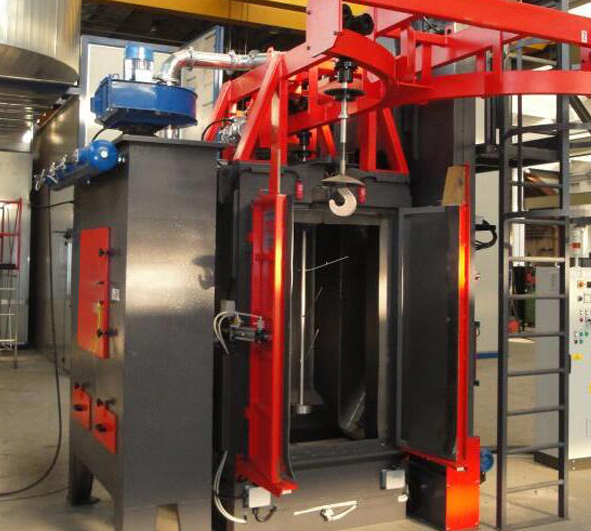

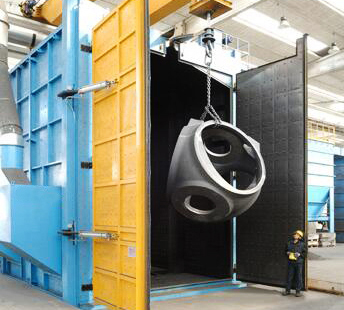

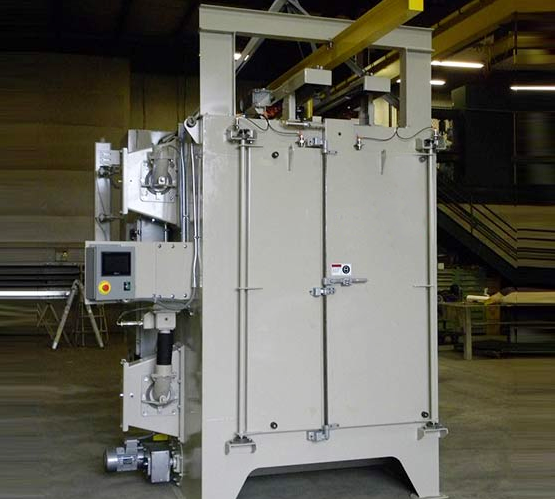

Hook type shot blasting machine is divided into single hook and double hook, hook type shot blasting machine by two hook loading workpiece alternately into the shot blasting cleaning room. The shot blasting device is used to throw 0.2~0.8 pellets onto the surface of the workpiece, so that the surface of the workpiece reaches a certain roughness, so that the workpiece becomes beautiful, or change the compressive stress of the workpiece to improve the life. This model is widely used in casting, construction, chemical industry, motor, machine tool and other industries of medium and small casting, forging surface cleaning or strengthening treatment.


1. The fourth generation of the international cantilever centrifugal shot blasting device with large shot blasting quantity and high projectile velocity can significantly improve the cleaning efficiency and obtain satisfactory cleaning quality.

2. All the drawings of the shot blasting machine (including the determination of the type number, number and spatial layout of the shot blasting machine, etc.) and all the drawings of the shot blasting machine are drawn by computer aided design (CAD), and the selection and layout of the shot blasting machine is more reasonable. It improves the utilization rate and labor productivity of the projectile, ensures the cleaning effect, and reduces the wear of the chamber body protection plate.

3. The popular structure of the landless pit not only saves the construction cost and time of the pit foundation, but also solves the problem of the shot sand rust and caking in the hoist caused by the water stored in the pit by users in the south.

4. Cleaning the indoor hot area using rolled Mn13 plate protection, compared with the previous rubber plate protection, its service life is greatly improved, and beautiful appearance, easy to replace, is the most popular cleaning machine room body protection.


TypeSize of workpiece cleaned(m)Carrying weight of single hook(kg)Capacity of shotblasting(kg/min)Lifting Capacityof hoist(t/h)Separating capacity of separator(t/h)Ventilation capacity(m³/h)Power(excluding dedusting)(kw)Outline dimensions(mm)
Q376φ 600x11005002*12015155000194429*2850*3443
Q378φ 800x150010002*2002222800032.54325*2660*5009
Q3710φ 900x160010002*2503030900036.555047*3850*5156
QD3710φ 900x160010002*2503030900039.655844*2742*5716
Q3720φ 1400x230020003*25045451500061.276110*3599*7842
Q3730φ 1600x230030003*25045451500064.47085*4650*8652
Q3750φ 1800x250050004*25060601800078.47062*5460*8652
Q3780φ 2000x300080004*25060602000081.58050*6400*8526
