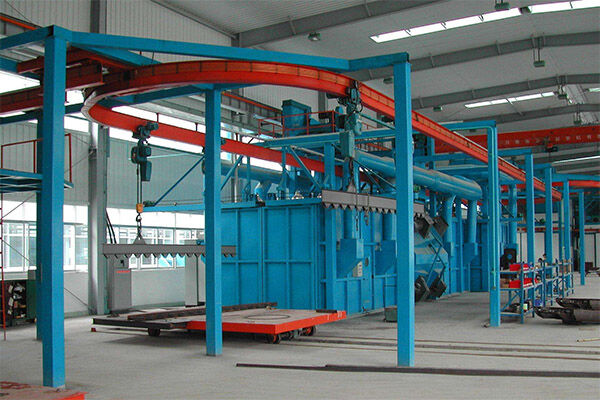

The hanging chain ball cleaning machine is suitable for the cleaning of small cast iron, steel castings, forgings and stamping parts. It is especially suitable for forgings and cleaning of castings to remove the sticky sand, rust, oxide skin and dirt on the surface of the workpiece, to make the surface of the workpiece metal present, eliminate the internal stress of the workpiece and improve the fatigue resistance of the workpiece. It can increase the adhesion of the paint when the workpiece is jet, and ultimately achieve the purpose of improving the surface quality of the workpiece.

 The equipment has the following characteristics:

The machine has the characteristics of advanced design, reasonable structure, reliable operation and high production efficiency.

2. With the help of PLC electric control, the control gate of the projectile and the transmission of projectile and so on, the automatic control of the whole machine is realized, which has the characteristics of high productivity, good reliability and advanced degree of automation.

3. The shot blasting chamber body is welded with steel and steel plate, and the box structure has high strength without vibration. The shot guard zone of shot blasting room is made of ZGMn13 guard plate. It has great improvement in abrasion resistance and bullet proof pellets, and the life span can reach more than 17000 hours.

the dust removal system adopts the most advanced pulse type reverse blow dust collector in the world, which fully meets the requirements of modern environmental protection dust removal. The dust removal effect is in line with the requirements of comprehensive emission standards for atmospheric pollutants.

5. The Q034z15 cantilever centrifuge projectile with the highest domestic market coverage rate, large shot shot and high ejection speed can significantly improve the cleaning efficiency and labor productivity, and ensure the cleaning effect. The projectile is symmetrically arranged so that the workpiece can be impacted by the projectile which is more comprehensive and soft. It can achieve the ideal cleaning effect and ensure that the workpiece will not change. One shot and two rebound projectiles can improve the utilization ratio of the projectile and make the projectile cover uniformly and uniformly.

the workpiece carrying body adopts the Longmen frame structure, which can guarantee the free continuous delivery of the workpiece under the suspended chain suspension, and meet the cleaning requirements and operation safety of the workpiece to the maximum limit.

the separator adopts curtain curtain separator, the separation effect is good. The separation efficiency of pellets, slag and dust reached 99%.
